Product Description:
1. FAEBI-Rubber air-spring for highly, effective insulation of machinery and sub-assemblies against impact and oscillation.
2. The bell shaped component is made of high grade elastomer. The construction allows a highly effective insulation without the disadvantage of excessive horizontal deflection.
3. It is impossible for the element to break down as a result of overloading or a sudden drop in pressure. To reduce vertical dampening, the component is available with additional attenuation.
4. The base plate is equipped with an anti-slip plate so there is no need to anchor the machine to the floor.
Note: For outdoor use (e.g. isolation of a roof top air condition unit) the FAEBI® can be supplied in stainless steel and EPDM elastomer version.
Range of Application:

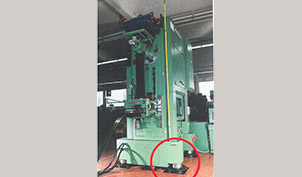

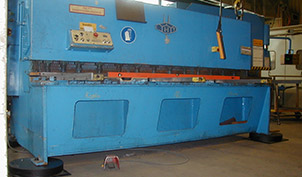

1. Excellently suited for active insulation of high-speed power presses, forging hammers as well as other machines and equipment with highly dynamic forces.
2. Passive insulation of measuring and testing machines as well as high-precision machine tools.
3. Can be supplied optionally with electronic or mechanical level controller.
