PRODUCT FEATURES:

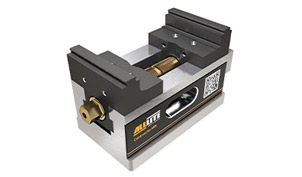

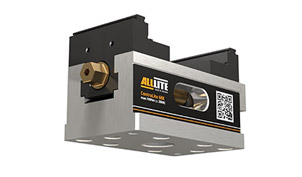

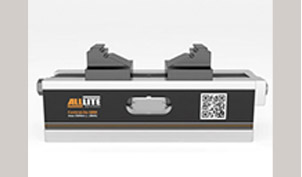

- Mechanical centric vice
- Clamping force: 28 kN with 100Nm
- Massive stable base part from tool steel – without holes
- Reversible step jaws, width 67mm
- Threads on high and stepped sides for step strips and customization
- V notch for clamping round workpieces with a diameter of 10 mm 5<=d <= 45 mm
- Hardened slideway and jaws
- Spindle with a high tensile strength of 7001\i/mm2, good sliding properties and a very high wear resistance
- Clamping range 0mm — 164mm

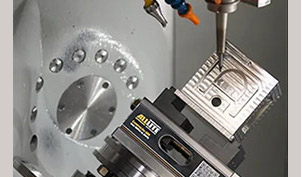

- Ideal for use on 5 axis machining centres
- Horizontal installation – Suitable for vertical machining centres
- Vertical installation – Suitable for Horizontal machining centre
- Suitable for CMM insertion mountings
- 1x CentroLite 68M Base Part – Blank
- 1x Step Jaws b67 Smooth (Pair)
- 1x Spindle 68M Complete
