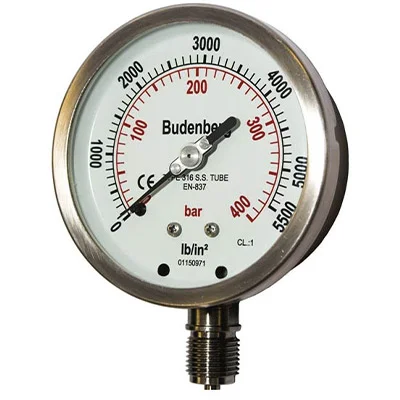

The Classic range of Pressure Gauges has been designed to meet the high demands of the process industry.
From harsh corrosive chemical applications to general engineering uses, the Classic combines a high specification with a very cost-effective price.
The standard unit incorporates 316 stainless steel wetted parts that are housed within a liquid fillable 316 stainless steel case. Standard units are available as dual scale bar and psi, but custom scales can be supplied. 316L wetted parts and cases are available as an option.
Available with a wide range of accessories including Syphons, Snubbers, Gauge Savers, Manifolds, Diaphragm Seals etc ensures that Budenberg can provide you with the right product to suit any individual application or requirement.
Product Highlights
From harsh corrosive chemical applications to general engineering uses, the Classic combines a high specification with a very cost-effective price.
The standard unit incorporates 316 stainless steel wetted parts that are housed within a liquid fillable 316 stainless steel case. Standard units are available as dual scale bar and psi, but custom scales can be supplied. 316L wetted parts and cases are available as an option.
Available with a wide range of accessories including Syphons, Snubbers, Gauge Savers, Manifolds, Diaphragm Seals etc ensures that Budenberg can provide you with the right product to suit any individual application or requirement.
Product Highlights
- Size: 100 mm (4”)& 150mm (6”)
- Temperature Effect: Max 0.4% / 10K
- Mounting: Direct, Flush or Surface, Direct Back
- Dial: White Anodised Aluminium marked in black finish
- Pointer: Black Aluminium Micrometre, adjustable
- Scale Range: 0 to 100 Bar / 0 to 1400 Bar
- Window: Toughened Safety Glass
- Pressure: Element ≤80 Bar
- Environmental Rating: IP67 as defined in EN 60 529
- Overload: Units withstands overload pressure up to 130% of FSD
- Traceability: All instruments are individually calibrated
- Pressure Connection: 3/8″ BSP or 1/2″ NPT as standard in stock
- Certifications: BS EN 10204 3.1B (Material) & Point by Point Test
- Accuracy Class: CL:1 1.0% of FSD as defined in EN837-1
- Temperature: Operating: -40 to +60 ºC, Storage: -40 up to +100 ºC
- Safety: EN 837-1 & PED specification and others
