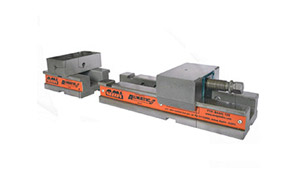

PRODUCT FEATURES:
- Excellent ease of operation guarantees optimal handling for every application
- Fast adjustment for clamping range pre-setting
- Operation with the ring wrench supplied
- Reproducible clamping forces are achieved using a torque wrench
- Integrated scrapers ensure functional reliability and minimise cleaning

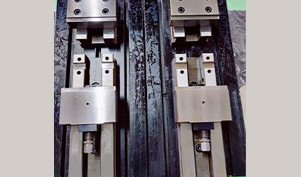

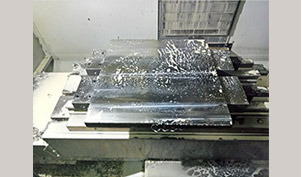

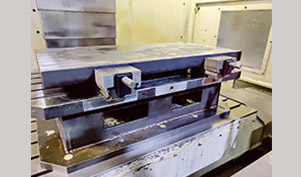

- Allow perfect clamping even of big workpiece which need the heaviest machining using machine table as surface.
- Manufactured under rigid quality control, hence can maintain accuracy under most severe operating conditions
- Space saving design & easy to handle.
SCOPE OF APPLICATION:
- Conventional and CNC controlled Heavy Duty Milling Machines.
SCOPE OF SUPPLY:
| Description | 1 Module | 2 Module |
| Fix Jaw Unit | 1 | 2 |
| Movable Jaw Unit | 1 | 2 |
| Screw Jack 45-60 mm | 1 | 2 |
| Screw Jack 70-100 mm | 1 | 2 |
| Side Clamp | 8 | 16 |
| Torque Wrench | 1 | 1 |
| T-Type Allen Key | 1 | 1 |
