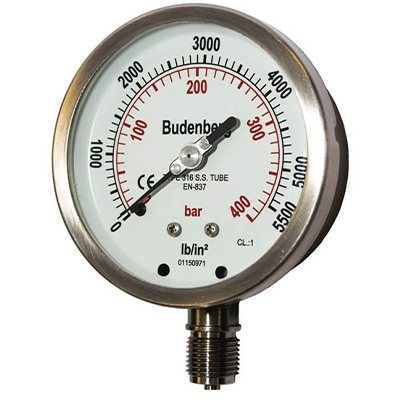

The Classic 726 range of Pressure Gauges are designed tomeet the high demands of theprocess industry as well asdiverse range of applications.
From harsh corrosive chemical applications to generalengineering uses, the Classic 726 combines a highspecification with a very cost-effective price.
The standard unit incorporates 316 stainless steel wettedparts that are housed within a liquid fillable 316 stainlesssteel case. Standard units are available as dual scale barand psibut custom scales can be supplied. 316L wettedparts and cases are available as an option.
Available in direct, surface, or flush mounting variants, the726 can be configured to suit any individual application.In addition, Budenberg can supply a full range of Syphons,Snubbers, Gauge Savers, Manifolds, Diaphragm Seals etcSeals etc.
Product Highlights
From harsh corrosive chemical applications to generalengineering uses, the Classic 726 combines a highspecification with a very cost-effective price.
The standard unit incorporates 316 stainless steel wettedparts that are housed within a liquid fillable 316 stainlesssteel case. Standard units are available as dual scale barand psibut custom scales can be supplied. 316L wettedparts and cases are available as an option.
Available in direct, surface, or flush mounting variants, the726 can be configured to suit any individual application.In addition, Budenberg can supply a full range of Syphons,Snubbers, Gauge Savers, Manifolds, Diaphragm Seals etcSeals etc.
Product Highlights
- Size: 63 mm (2.5”)
- Temperature Effect: +/- 0.4% per 10 °C
- Mounting: Direct, Surface, Flush or direct with rear connection
- Dial: White Anodised Aluminium marked in black finish
- Pointer: Black Aluminium Pointer
- Scale Range: 0 to 1 bar to 0 to 1400 bar or equivalent units of pressure
- Window: Toughened Safety Glass
- Pressure: ≤80 Bar – 316 Stainless Steel Bourdon Tube, ≥81 Bar – 316 Stainless Steel Coil
- Environmental Rating: IP67 as defined in EN 60 529
- Overload: Withstands overload pressure up to 130% of FSD
- Traceability: All instruments are individually calibrated
- Pressure Connection: 1/4″BSP as standard, Option: 1/8” BSP, 1/4” NPT
- Accuracy Class: CL:1 1.0% of FSD as defined in EN837-1
- Temperature: Operating: -40 to +60 ºC, Storage: -40 up to +100 ºC
