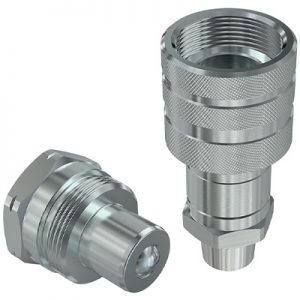

PVSM screw-to-connect couplings have been purposely designed for the heaviest applications in terms of working pressure. Equipped with a metal-to-metal sealing ball valve they are interchangeable according to ISO 14540 standards.
| Interchange | ISO 14540 |
| Available Size | 3/8” |
| Valve Style | Ball |
| Connection Type | Screw to Connect |
| Materials | High Graded Carbon Steel |
| Operating Pressure | 72 Mpa |
| Flow Rate@ 0.2 Mpa | 14 l/min |
| Connectionunder pressure | Allowed under Residual Pressure |
| Disconnectionunder pressure | Unscrew to Disconnet |
