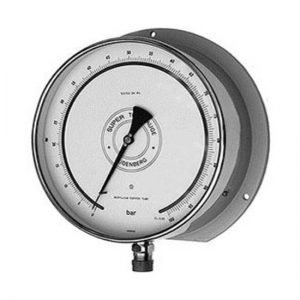

Our 0.25% accuracy Standard Test Gauge is undoubtably recognised as a world leader for its accuracy and, of course, Budenberg Quality.
This gauge incorporates a base test gauge accuracy with a maximum of 500 graduations where possible, along with a knife edged pointer and an anti-parallax mirror to help reduce the chance of human error. The Standard Test Gauge is an obvious choice when accuracy is paramount.
The standard test gauge meets all the requirements of EN837, and all units are supplied with a detailed calibration certificate with is traceable to National Standards. The gauge is also dust and splash proof to IP 54 standards.
Recalibration is simplified with the inclusion of a micrometre adjustable pointer as a standard feature.
Product Highlights
This gauge incorporates a base test gauge accuracy with a maximum of 500 graduations where possible, along with a knife edged pointer and an anti-parallax mirror to help reduce the chance of human error. The Standard Test Gauge is an obvious choice when accuracy is paramount.
The standard test gauge meets all the requirements of EN837, and all units are supplied with a detailed calibration certificate with is traceable to National Standards. The gauge is also dust and splash proof to IP 54 standards.
Recalibration is simplified with the inclusion of a micrometre adjustable pointer as a standard feature.
Product Highlights
- Size: 250mm dial diameter
- Mounting: Direct, Surface Mounting, Flush mounting options
- Case: LM6M Aluminium casting to BS1490
- Bezel: Stainless Steel 316L polished
- Scale Ranges: 0 to 1 Bar up to 0 to 400 Bar
- Accuracy Class: 0.15% of FSD as defined in EN837-1
- Dial: White anodised Aluminium
- Pointer: Micrometre Adjustable, Knife-edge, Stainless Steel
- Movement: Non-Ferrous with Glass Bearings
- Environmental Rating: Dust Proof and Splash Proof to IP54
- Operating Temperature: -20 to +60 Degrees C
- Certification: Traceable to National Standards
- Calibration: Individually calibrated on Gas or Liquid
- Safety: EN 837-1, to S1 and P.E.D.
- Pressure Element: Up to 70 Bar Beryllium Copper bourdon tube & Brass Chrome plated connection.From 71 Bar up to 400 Bar Beryllium Copper coil tube & Brass Chrome plated connection.
