PRODUCT RANGE
COMPRESSED NON ASBESTOS FIBRE GASKETS
- Aramid Fibre gasket
- Carbon Fibre Gasket
- Inorganic fibre Gasket

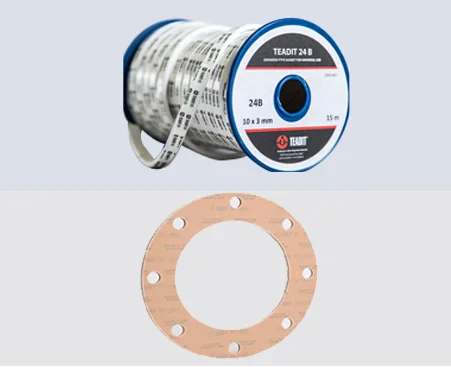

PTFE and EXPANDED PTFE GASKETS
PTFE ENVELOP GASKETS
A PTFE envelope gaskets is a composite gasket where the product consists of an envelope of PTFE with an insert material. The main advantage of an envelope gaskets is that it gives the strength and characteristics of the core material along with the properties of PTFE.
GRAPHITE GASKETS
- Plain Graphite Gasket
- Plain Metal Inserted gasket
- Tanged Metal Inserted Gasket
GRAPHITE DIE MOULD RINGS
SPIRAL WOUND GASKETS
- Spiral Wound Gaskets without Rings
- Spiral Wound Gaskets with Outer Ring
- Spiral Wound Gasket with Inner ring
- Spiral Wound Gaskets with Inner & Outer Rings
CAMPROFILE GASKETS
DESCRIPTION :
Camprofile Gasket consist of a metal core serrated on both sides , generally made from stainless steel. Is covered with a soft conforming sealing material that is bonded to each face, where depending on the material performance will be made from PTFE or graphite. The result is a gasket which combines the benefits of soft materials with the advantages of seal integrity associated with metallic gaskets.
CHARACTERISTICS :
- Temperature resistant up to 1000 ºC (1832 ºF), depending on the coating material.
- Resistant to pressures up to 250 bar (3625 psi).
- Camprofile gasket provides a high integrity, low seating stress seal and is ideal for heat exchanger applications with limited bolt load or lighter weight flanges.
- Will not damage flange surface and is easily removed.
- Reduces maintenance costs and leakage.
