PRODUCT FEATURES:
- The centre is adjustable. The position of the workpiece stays within set boundaries
- Repeating accuracy ± 1/100 mm for angled workpieces
- Guides ground, polished and paired
- Clamping range pre-setting via adjustment of clamping jaws along transverse slots of spindle nuts
- Moulding and clamping in a single step, directly in the work area – no auxiliary aids required
- Precise tracks in the grounded surface of the soles for optimum alignment on the machining table
- Use with a torque wrench – max. 70 Nm
- Fully enclosed and maintenance-free high-pressure spindle – high chip protection, minimum cleaning requirements, constant clamping forces up to 40 kN
- Standard with mounting holes for zero-point clamping system, Pitch 200
- Horizontal installation – suitable for vertical CNC milling machines

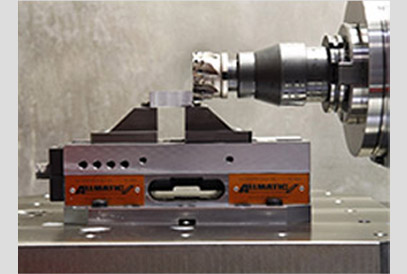

- Ideal for use on five-axis machining centres due to its compact design
- Depending on the clamping jaws, both pre-machined workpieces and unmachined parts can be clamped

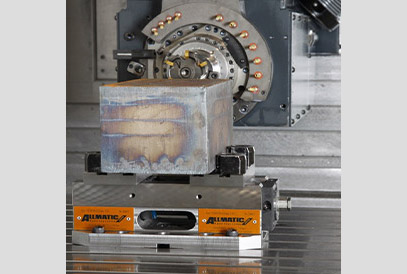

- With support jaws, unmachined parts with varying types of flame-cut and sawn materials and even complex castings can be clamped safely and economically. Suitable for materials of mechanical strength of up to approx. 1000 N/mm².

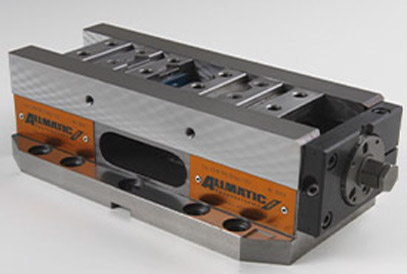

- 1 High – Pressure Vice without Jaws
- 2 Combination Wrenches
- 6 Fastening Screws, M12 x 3.5 mm
- 2 Socket Screw Wrenches
- 1 Wrench Socket (Please Order Clamping Jaws Separately)
