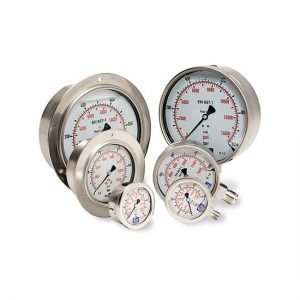

Bottom and panel mounted pressure gauges in models up to 5500 bar (550 MPa). All models are glycerine filled for improved performance and long life. The gauges are made of stainless steel and feature high accuracy and a long service life.
Technical data:
Technical data:
| Max rec. working pressure | 75% of the full-scale range. |
| Material | Stainless steel AISI 316 and AISI 304. Dial face of aluminium with black graduations Pointer of aluminium or stainless steel. Gasket of polychloroprene. |
| Pointer of aluminium or stainless steel. Gasket of polychloroprene. | |
| Window of plexiglass. | |
| Units | bar and PSI or MPa |
| Protection class | IP 65 |
| Liquid | Filled with 98% glycerine |
| Accuracy | Ø 63 mm +- 1.6% of full scale. Ø 100 and 150 mm +- 1% of full scale. |
| Temperature range | 15°C — +65°C (59°F — +149°F) |
| Miscellaneous | Ø 100 and 150 mm manufactured in accordance with EN 837-1. |
| Dimensions F and B have a tolerance of +/-1mm due to the rubber gasket | |
| around the face of the gauge. |
