Flat Face One hand operation Safety Lock

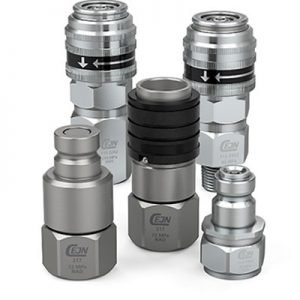

High-flow flat-face couplings for ultra-high-pressure hydraulics
Technical data:
The High-Flow hydraulic High-pressure quick connect couplings are flat-face couplings with small outer dimensions but mighty performance. That makes them particularly suitable for hydraulic tools with high-flow requirements.
Technical data:
| Nominal flow diameter | 4, 6.3 mm |
| Max. working pressure | 72 – 80 MPa |
| Material coupling | Hardened, zinc chromate plated steel, Steel, Zn-Ni |
- High ratio working pressure vs flow performance
- Flat-face design
- Non-drip on connection and disconnection
- Safety locking included
- One-hand operated
- Compact design
