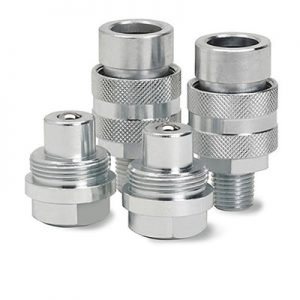

Screw to connect ISO 14540
Screw-to-connect couplings for ultra-high-pressure hydraulics.
Technical data:
Robust screw-to-connect couplings with high flow rate and ability to withstand harsh conditions
Compliance with ISO 14540 ensures complete interchangeability with other brands following the same standard. The standard version is equipped with a ball type valve, but it is also available with poppet valve for considerably higher flow performance.
Technical data:
| Nominal flow diameter | 6.3, 10 mm |
| Max. working pressure | 72 MPa |
| Material coupling | Zinc plated steel |
- Available with teeth lock function for increased vibration resistance
- High flow rate capacity
- High durability
- Built to withstand harsh conditions
